SRXL2 Technology

[10x]

Thanks for the support Tomas, 2 receivers ordered...

[10x]

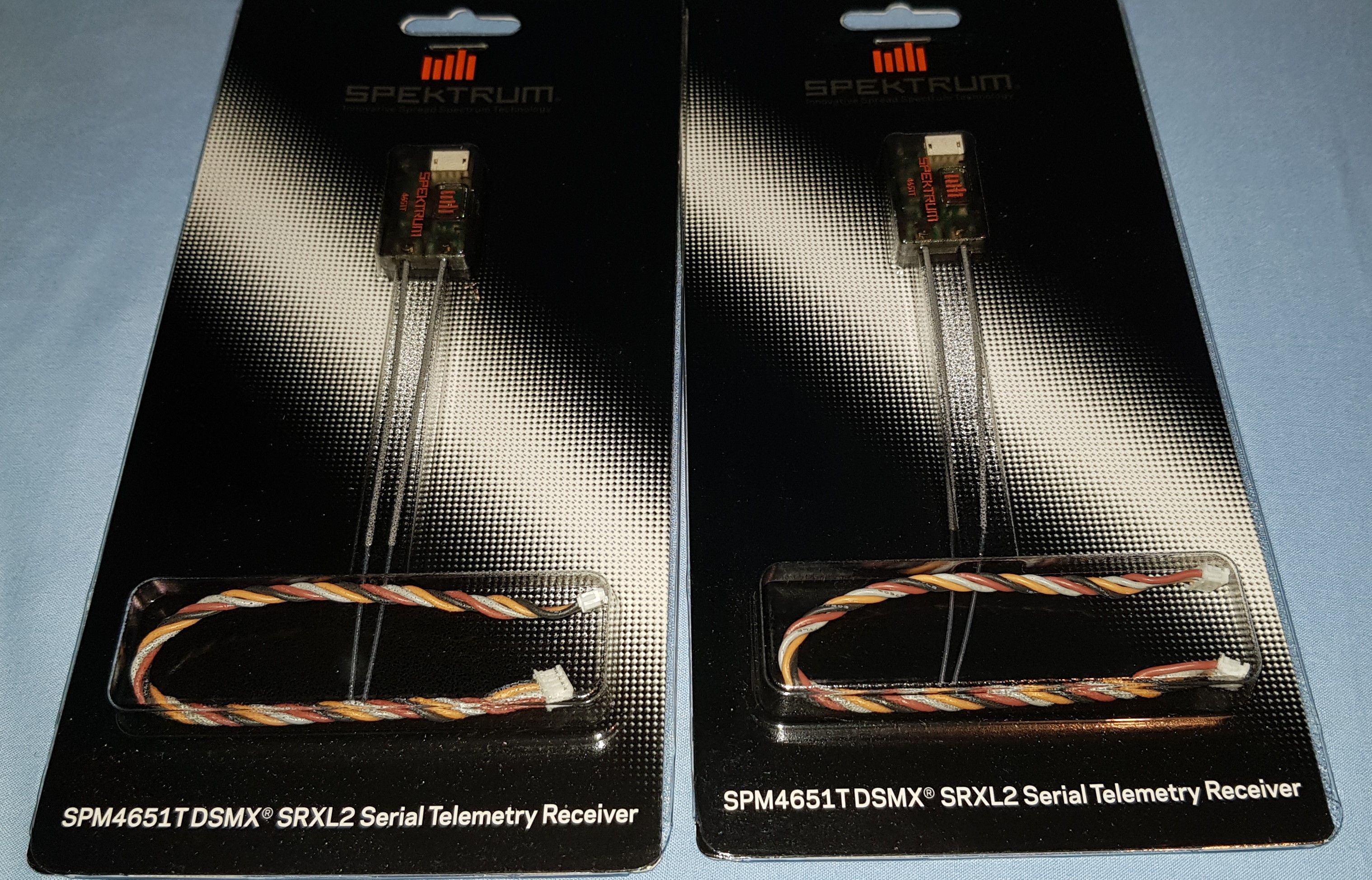

These 2 arrived today Ready and waiting......

[ZeXx86]

Our adaptors will be ready in 1-2 weeks.
Also support for the receivers will be available.

[10x]

Thank you Tomas....Great support....

[Pking]

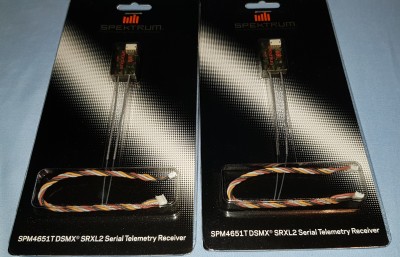

20200103_130937 (2).jpg

These 2 arrived today Ready and waiting......

Can you tell me what this new device will have versus the previous model ?

New features ? Better integration ? I have a DX9

Thanks

[ragge1]

The adapter is a easy fix , made one myself that I'm using with my brain2 , my understanding 4651T uses a different protocol than the 4649T , just waiting for comfirmation from Tomas and probably a firmware update , ready to try on my spirit pro [emoji6]

Skickat från min SM-G950F via Tapatalk

[RV1TD]

Can you list what colors on each connector went to which color wire on the other? Also, which wire did you cap off unused?

[ragge1]

Can you list what colors on each connector went to which color wire on the other? Also, which wire did you cap off unused?

the grey wire is unused

[ZeXx86]

Here is firmware and software for people interested in testing (At your own risk.):

http://spirit-system.com/dl/fw/beta/spi ... -beta1.4df
http://spirit-system.com/dl/settings/be ... -win32.exe

Telementry and integration is not enabled in this version.

There is new receiver type SRXL2. Connection is same as with SPM4649T - communication wire at the AIL pin.

[ZeXx86]

Support with Telemetry and Integration support can be tested with this firmware:
http://spirit-system.com/dl/fw/beta/spi ... -beta3.4df

From our tests it is working little bit faster than with SPM4649T receivers.
Wish you a great day!
