Unable to bind SRXL2 Sat SPM9747 with Spirit GT and 4651T

[ZeXx86]

Please make sure to disable ESC telemetry and GeoLink support.
Then it should work.

Are you using Spirit SRXL2 satellite adapters?

[beserkr]

Just double-checked, Geolink is already disabled (I don't use one).
I did have Hobbywing V4 telemetry enabled since I use that, so I just disabled ESC telemetry, pressed CTRL-S and re-initialised the system.

The 4651T or 9747 still do not work in either SAT1 or SAT2.

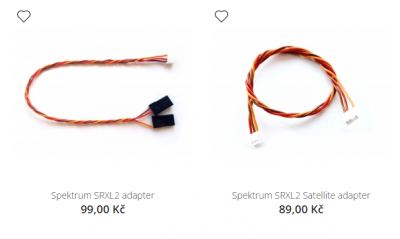

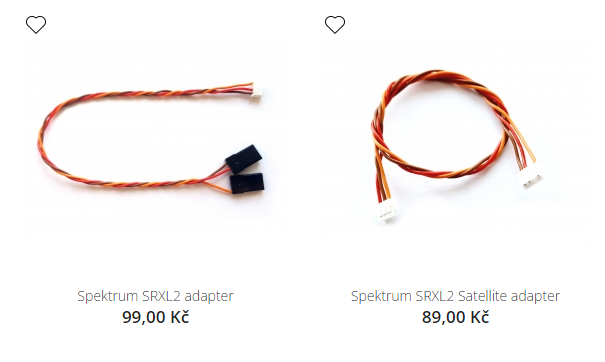

I have made my own versions of both of the SRXL2 cables in the screenshot attached. I modified one of the included Jeti integration cables to make a Spektrum SRXL2 Adapter cable (for the 4651T), and similarly made my own Spektrum SRXL2 satellite adapter for the 9747.

I just tested each cable with my multimeter and resistance is below 1 ohm for every pin-to-pin connection on the cables.

[ZeXx86]

That is very interesting.
I cant see any technical reason why it wont work.
The same thing was tested many things and just work.
Is the orange wire going in the right slot in the 4 pin JST connector?

It is enough to just move the sat at any free port of these 3 (after initialization was made at the AIL pin).
So just one satellite is needed to verify if the sat is working.

Have you other Spirit unit to try?

[beserkr]

I am quite confused by it.

I've put the orange signal wire in to the end pin of the JST, as shown here.

Funnily enough, a friend of mine dropped off a heli for me to setup and along with it, a Spirit GT. As soon as I have time, I'll test with his Spirit GT and come back to you.

Thanks Tomas, speak soon.

[TheSteve]

I connected a Spirit II to a pair of SPM4651T's today to test. Both were bound to the transmitter. The Spirit II would only response to the receiver connected to the rudder/air connections. I was not able to get the Spirit II to recognize any input from the receiver when connected to Sat 1 or Sat 2. No telemetry or Geolink was enabled.

This isn't a setup I am planning to run, but since I have all the gear on the bench I thought I'd give it a try. So are we both missing something obvious?

I tried Spirit firmware 3.3.3, 3.3.2 and 3.3.1, The SPM4651T's are running firmware 2.44

[Mattes61]

Hello,
I have an additional proposal to test - Can you try the normal dsmx2 satellites in sat1 and in sat2 and test it in the same way like the SRXL2 satellites ? Bind the satellites to the transmitter, put in the sats in sat1 and sat 2 - can the sat2 overtake the control if you deconnect the sat1-satellite ? The other test can be only sat1 deconnect it and then put it back in sat1-port will it work again without any problems ?

Have you the possibility to test this too ?

Best Regards
Matthias

[Mattes61]

Hello,
I have tested this obove situation (my proposal) with the DSMX2 satellites -

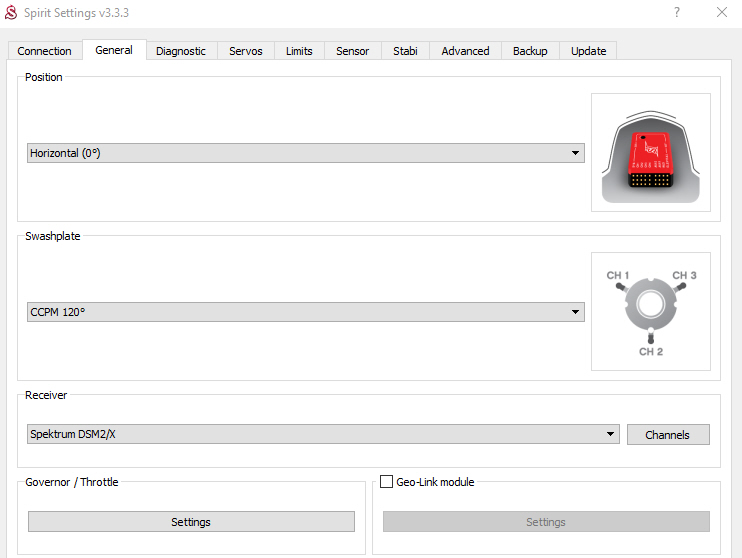

I took a Spirit GT (3.33) and selected the DSM2/X receiver in the spirit settings saved it, closed spirit settings, powerd of the Spirit GT. I sticked to satellites in sat1 and sat2 port - After that I putted an Bind Plug in Ele/Pit/Ail powerd the GT on and the DSMX2-Satellites were flickering... then I bound it to my old DX8G2 (satellites are lighting up continuously), then I powerd off the GT and took out the Bind-Plug and then powerd the GT back on. Then I putted the usb interface in System and started Spirit Settings -
All channels are working perfect ! First what I did was to put out the satellite 1, no problem all works flawlessly - then I putted the sat1 back and it lights up solid again - Then I took off the satellite2 and the same like before it works flawlessly - I putted the satellite2 back again and it lights up solid again - all works perfect !
At last step I took out both satellites and then back again - all channels were working again flawlessly and both satellites lit up solid again -
As you can see here it works absolut perfectly !
Finaly I looked in the flight log and here you can see only one signal loss, when I putted both satellites off -

So I can say here that with the dsmx-satellites it works perfect and secure in my opinion -

So it should be also possible with the two SRXL2-Satellites, maybe some things must be changed in firmware in my opinion -

Best Regards
Matthias

Last Edited 20.12.21 16 O'Clock (Sorry that was the false Flight Log !!)

[Mattes61]

Hello,
you have got the false Flight-Log...
I corrected my previous post and attached now the correct flight log, sorry!

Best Regards
Matthias

[beserkr]

TheSteve - thank you so much for testing and validating the issues I'm having.

Update from me:

-Tested with a second Spirit GT
-flashed to 3.3.3 and factory reset
-loaded with the same model file (550X) as my own Spirit GT

I get the same issue - the unit will only respond to input from an SRXL2 receiver connected to the AIL port, never one in either of the SAT ports.

Tomas - please let me know if you need anything else from me to assist your investigations and I'll do my best to provide it.

[ZeXx86]

Hello,

thank you very much for the details. These are very helpful.
Tomorrow we will try to investigate it more.
