Wintertime, perfect to have a closer look on the HW and played with vibration analysis. The tool is just great, thanks a lot.

My Wish:
RPM instead of Hz (rpm = Hz *60) on Axis,
General output with peak sum (xyz), allowing drill down into xyz on demand.

I did a vibration analysis and was impressed how easy I could get ridge of tail vibration.
rpm 2100 (35Hz) / Gear 8.85 (309Hz Motor) / Tail 4.8 (168Hz)
Took Main Blades of and released tail servos to move free.

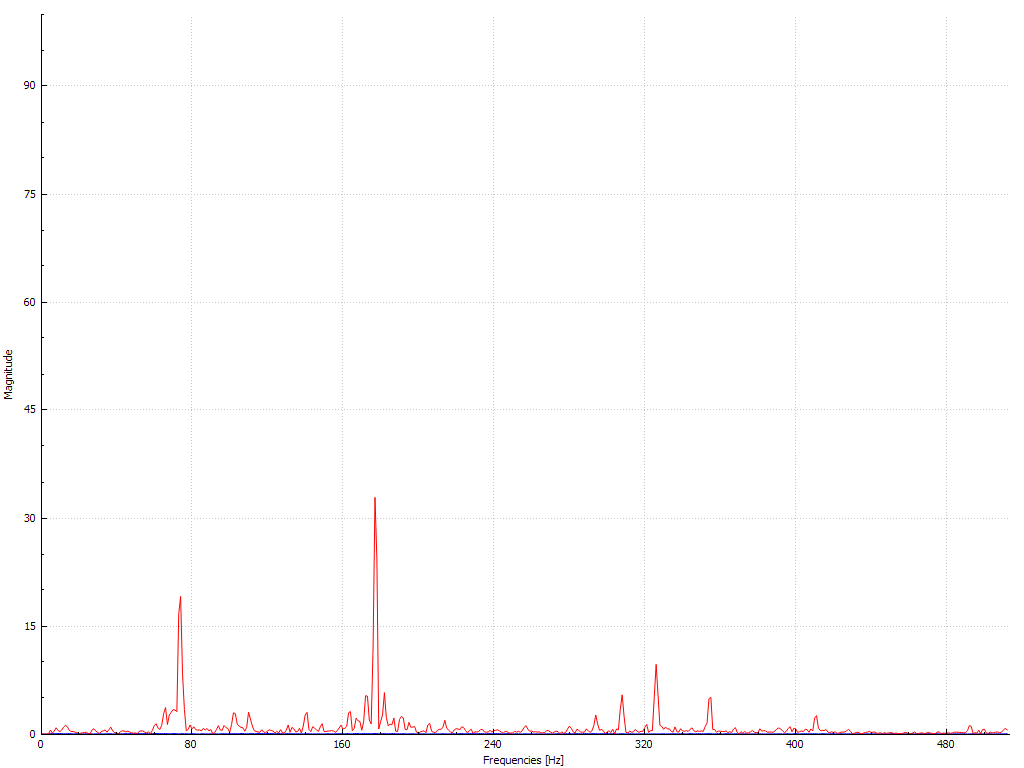

I did start with a 60 Peak on Y-Axis

I did add some tape on one tail blade (around front edge in the middle/center), ending with 120 peak, so wrong blade.


Moving it to the other blade, got better results.


Making it smaller, thinks look great now.

You can already display exact RPM by mouse anywhere in the plot.

Yes I know, some other Manufactures show Hz as well, but we all run and think on rpm as many other rotation systems, this would just make it easier and better
You could even ask for Tail ratio to highlight and name peaks running on Spirit governor, this would be cool, but I guess you have other priorities.
