Hi,

I`m new to spriti units. I just bought my first uSpirit and checking the documentation on wiring it up.

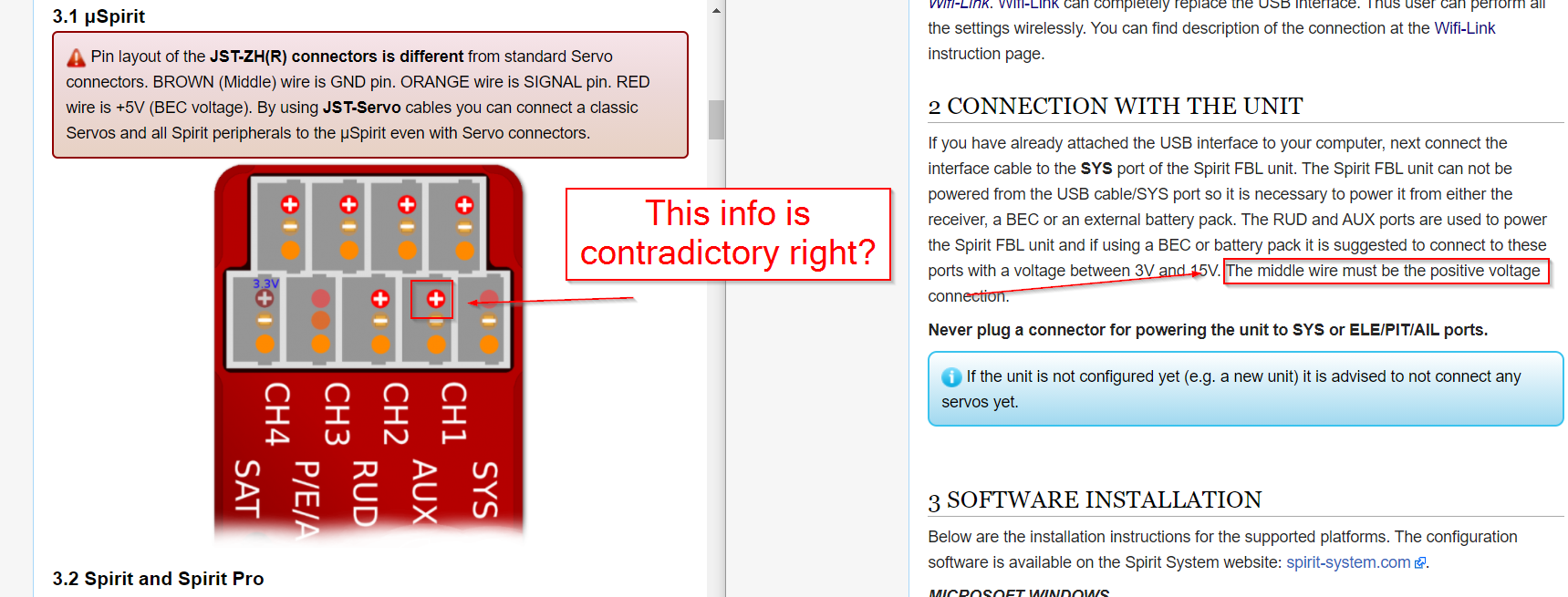

Basically it is not clear for me which is the positive and negative pins in aux or rud ports. Please see the attached picture to clarify my missunderstanding

Hello,

it is correct in both cases, except the text is describing classic servo layout. There it is general for all units. But uSpirit has no servo connector, until you will use JST-Servo/JST-RX adapter.

Please proceed according uSpirit scheme.

Ok got it!
Thanks for quick reply!
