bt no conection

[john1127]

It will pair to phone but will not connect/

[ZeXx86]

Do you power the bluetooth from external battery or it is powered from the BEC (same power supply as the unit)?

[ZeXx86]

In this case communication cable of the bluetooth module is not connected to the SYS port correctly. Cololrs should match as when there is connected USB interface.

[john1127]

It is set up as diagram, saw post one person had conections reversed on rx and saws it works. whats up in here cant get straight answer from spirit either.......

[ZeXx86]

I have responded to your question, but you did not read it yet.
You have sent me private message so I have responded immediately to it.

Here is the answer for your question:
it is correct that BT module is flashing. It will flash even without connected data cable.
Orange/red cable should be connected so that orange wire is closer to the labels on the unit.

Then you should pair your BT module in Android settings so you will see your BT device in the Spirit Settings app/Connection.
Then after you will click the Connect button you should see progress, BT led should not flash anymore (still ON while connected).

[john1127]

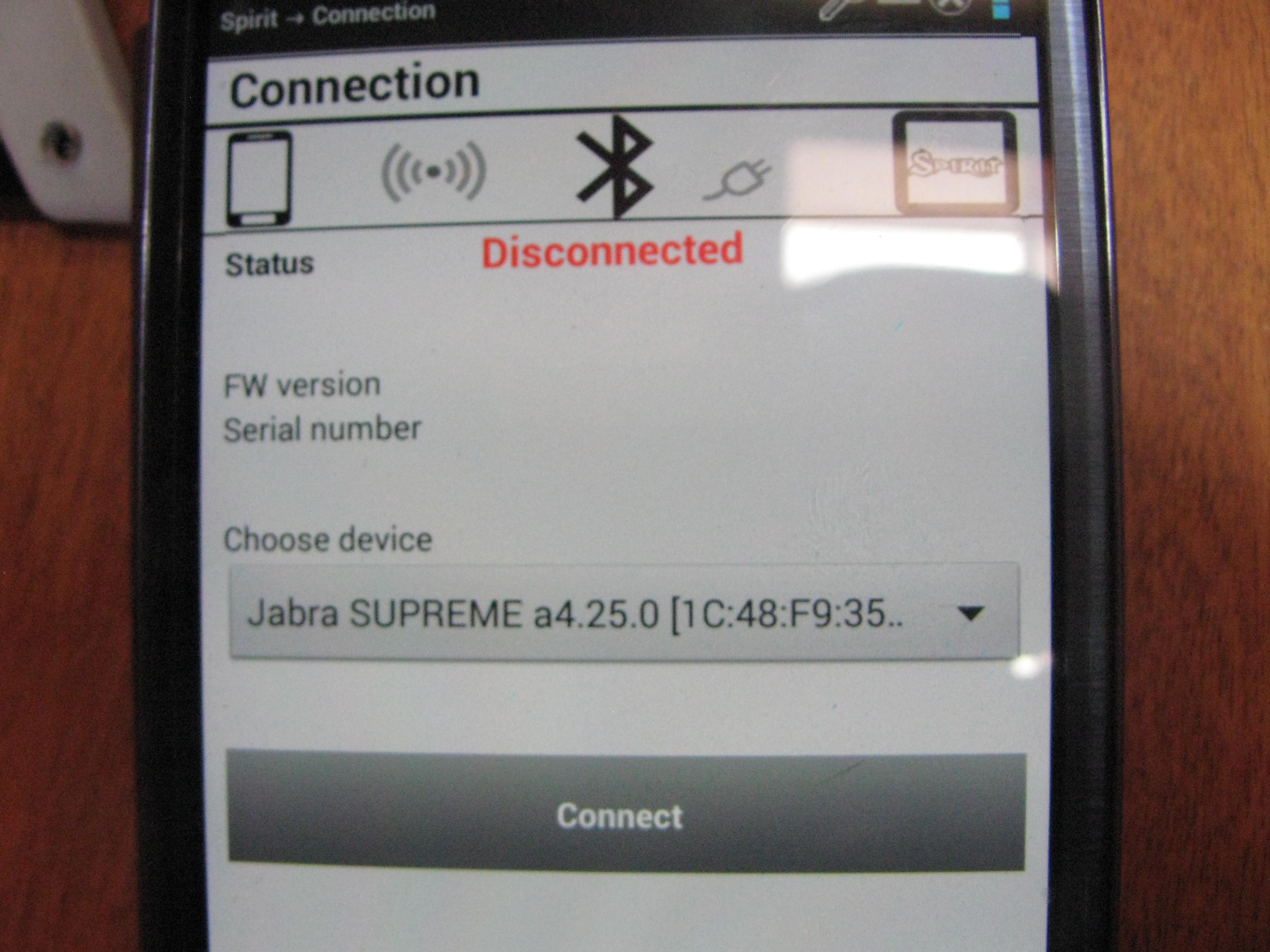

that is what I am saying all is right , choose devive comes up Jabra supreme a 4.25.0 hit connect and it trys to connect and then shows disconected

[ZeXx86]

Could you please try it with other Android based device? Coud you please take a photo of the connection in the unit?

We are testing each BT module prior to sending, so there is no possibility there is any problem. But if you wish, we can check it and make sure it is still OK.

[john1127]

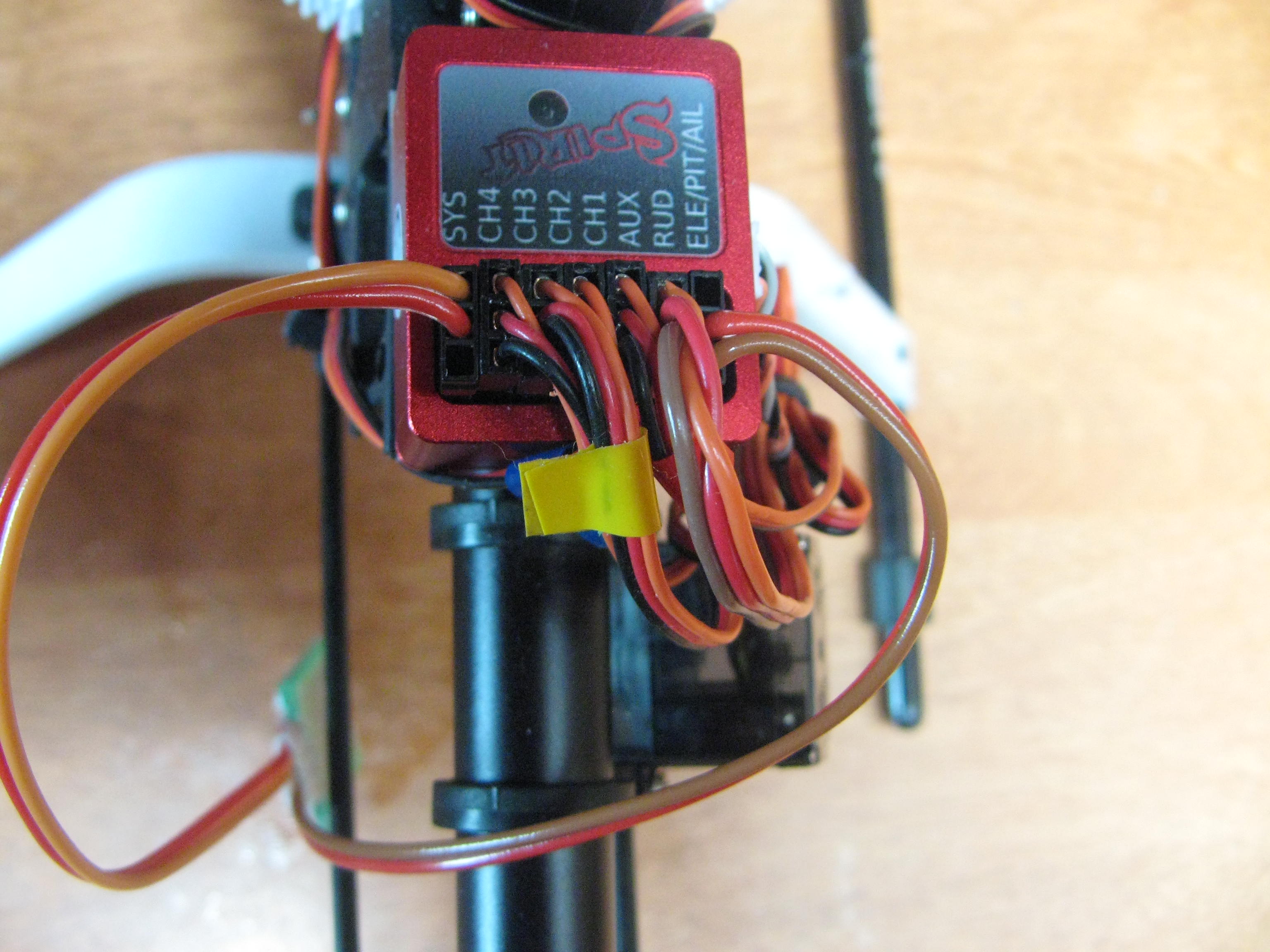

Here is how it is set up

[john1127]

power id in rudder port to rear thks so much john

[ZeXx86]

Thank you very much. So we have found the problem.

The device that you should see is not Jabrama Supreme but Spirit-XXX.
The only problem you have is, that your BT module is not paired with the phone.

Then you should see Spirit device in the connection screen.
