[RESOLVED] uSpirit lost compensation after downgrade to 2.8

In case you do not know something or you are not sure, here is the right place for your question.
Post Reply
simposon
Posts: 4
Joined: Sat 18. Apr 2020 0:34:00

Hi sirs,
My unit is uSpirit on my OXY2 with 4649T & hobbywing esc. It flys great when I use 2.7.1. :D
I just update to 3.0 about 5 days ago, and I found that the website suggesting downgrade to 2.8.
So I install 2.8 windows software and try to flash 2.8.0.4 firmware which is also downloaded at website.
When I try to flash 2.8.0.4 firmware, PC software tells me to flash 1.3.2.4 firmware, so I followed.
After 1.3.2.4 flashed, I continue to flash 2.8.0.4 and go the setup wizard flow. I select uSpirit in setup wizard but the pc software tells me that the unit is Spirit ? but it says that's fine ? So I keep setting and found that my swashplate & tail compensation is all gone !!?? What ever I re-connect the battery or re-flash 2.8.0.4, the uSpirit looks init fine but without any compensation. Could you please help me ? Thank you. :(
Best Regards,
Pu-Sheng
Last edited by simposon on Wed 22. Apr 2020 12:27:06, edited 1 time in total.
simposon
Posts: 4
Joined: Sat 18. Apr 2020 0:34:00

Update status when I try to flash my uSpirit Back to 3.0.
In setup wizard it shows my unit is Spirt, but actually it's uSpirit.

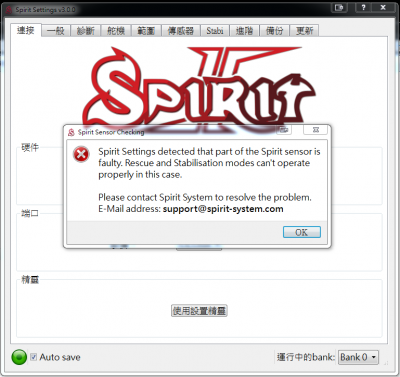

An I got an error message here.
Attachments
ZeXx86
Site Admin
Posts: 12836
Joined: Mon 29. Apr 2013 16:06:44
Contact:

Hello,

the problem was not update, but something happened to the internal data of your unit.

It can be fixed easily. We will send you firmware that can fix your unit. Then it will work again with any version.
Spirit System developer
simposon
Posts: 4
Joined: Sat 18. Apr 2020 0:34:00

Hi ZeXx86,

Really thanks for your quick reply.
I'll update the result when I receive your mail and firmware.
Thank you so much.

Best Regards.
bts162
Posts: 4
Joined: Sun 26. Nov 2017 23:01:06

I am having the same issue. How do I go about getting the fw fix?

Thanks
ZeXx86
Site Admin
Posts: 12836
Joined: Mon 29. Apr 2013 16:06:44
Contact:

Please send me serial number of the unit (displayed at the Connection tab) by private message or email. Then we can send you firmware to fix the issue.
Spirit System developer
simposon
Posts: 4
Joined: Sat 18. Apr 2020 0:34:00

Hi sir,

Thanks for your support. My uSpirit come back. Thank you. :D
ZeXx86
Site Admin
Posts: 12836
Joined: Mon 29. Apr 2013 16:06:44
Contact:

You are welcome :)
Spirit System developer
