Cannot get Auto Rescue to work with Jeti 12 transmitter

[krm97]

I have had pretty good success in setting up auto rescue with a single Jeti Receiver, like a Rex 7 Plus or a Rex 3.
I set up a back up Jeti 900NG satellite receiver with a Rex 7 Plus as the main receiver and I cannot get auto rescue to work using channel 8 on the transmitter. It appears to conflict with channel 5, so I keep channel 5 unassigned. All the auto rescue settings are correct in the Stabilization tab in the Spirit software. Please let me know what I need to do to get it to work.

[ZeXx86]

Hello,

there is zero difference when using different JETI receivers if configured to EXBUS.
You can use all DUPLEX receivers, configure it to EXBUS and they will output everything identically.
So if there is difference, it has to be in the radio.

Basically there is also no difference between Auto Rescue or any other stabilisation or Rescue mode.
You can share your Spirit settings so we can help you more.

[krm97]

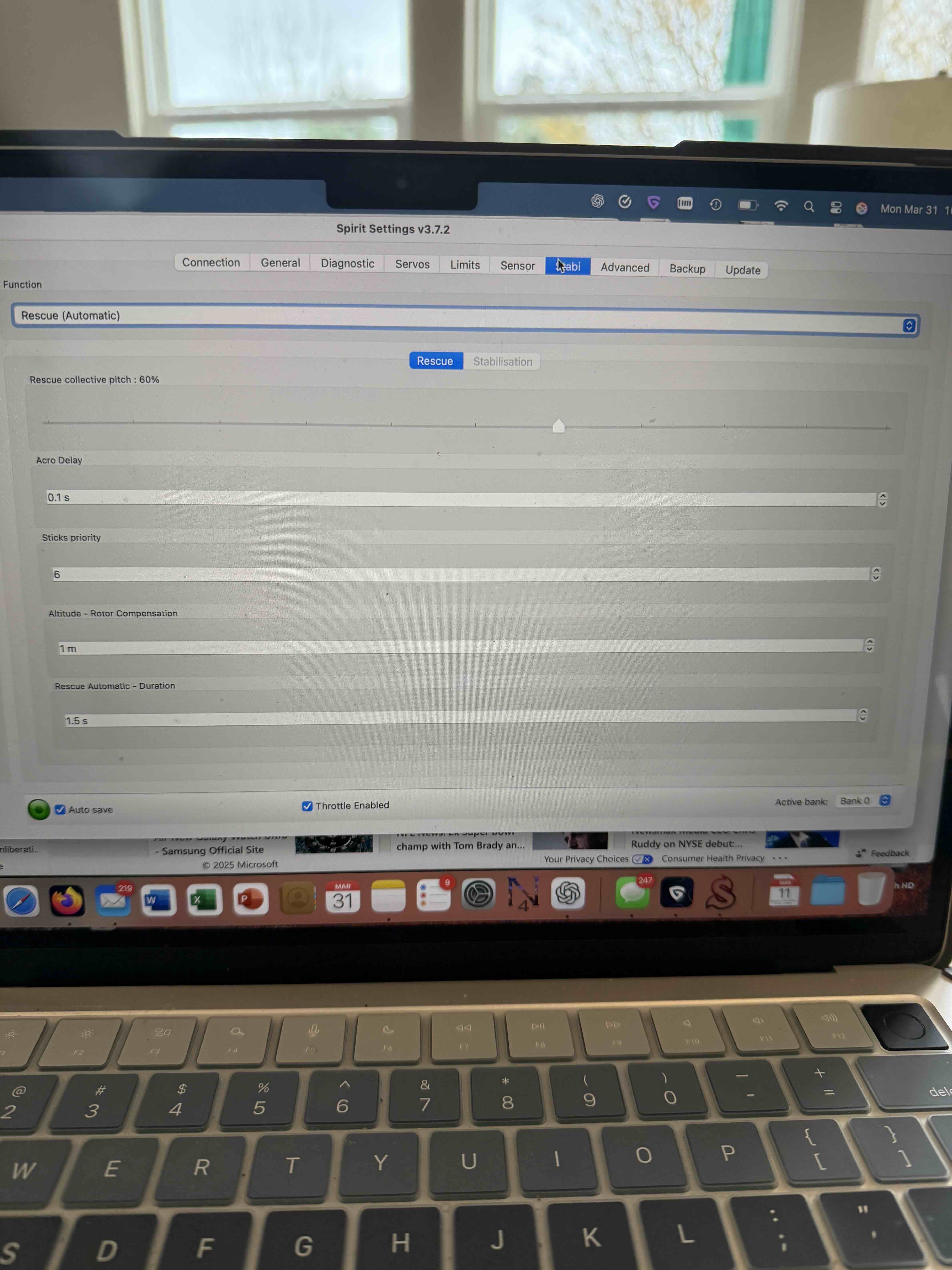

Please see attached settings to my Jeti 12 transmitter and Spirit Software

[krm97]

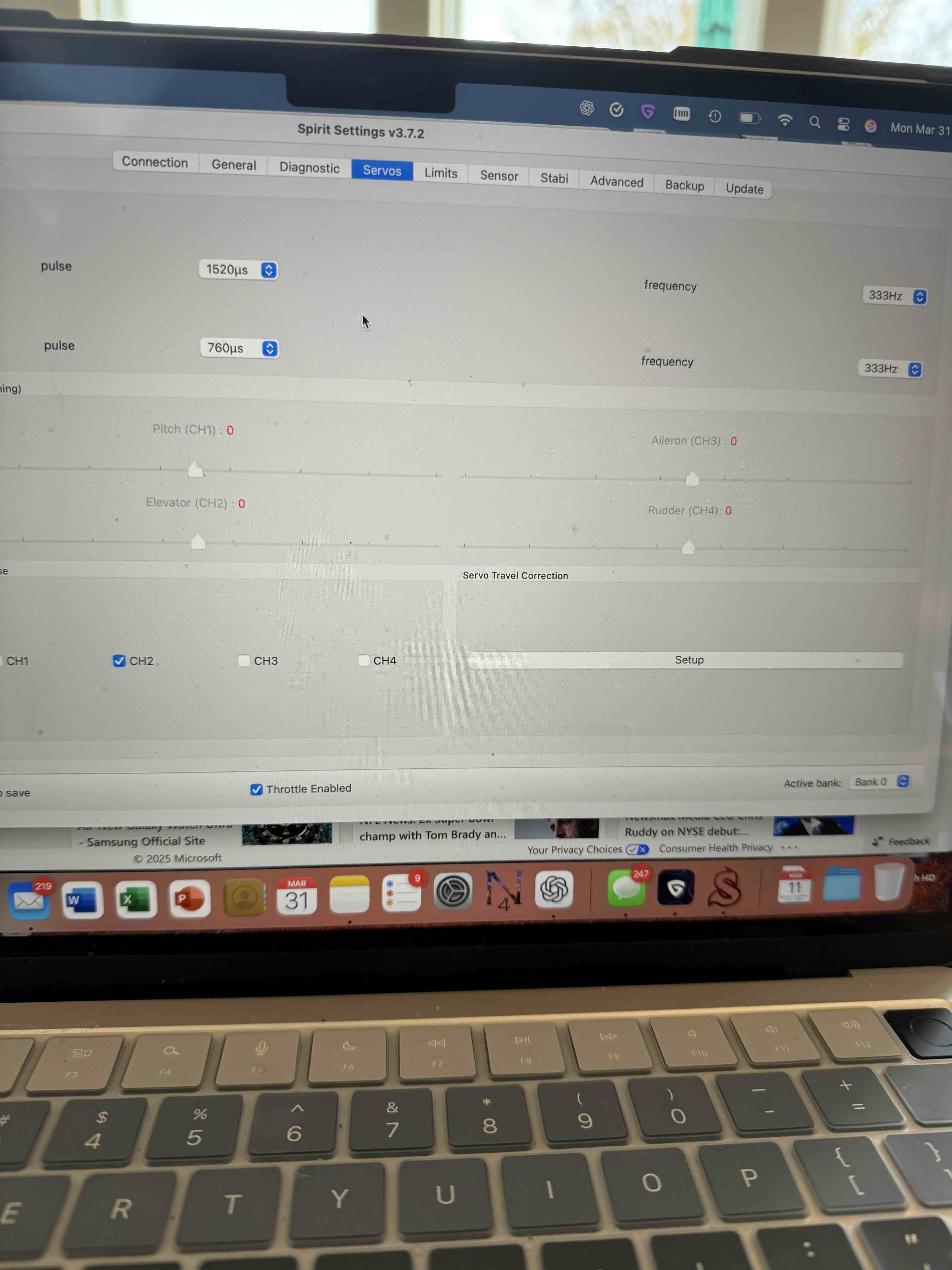

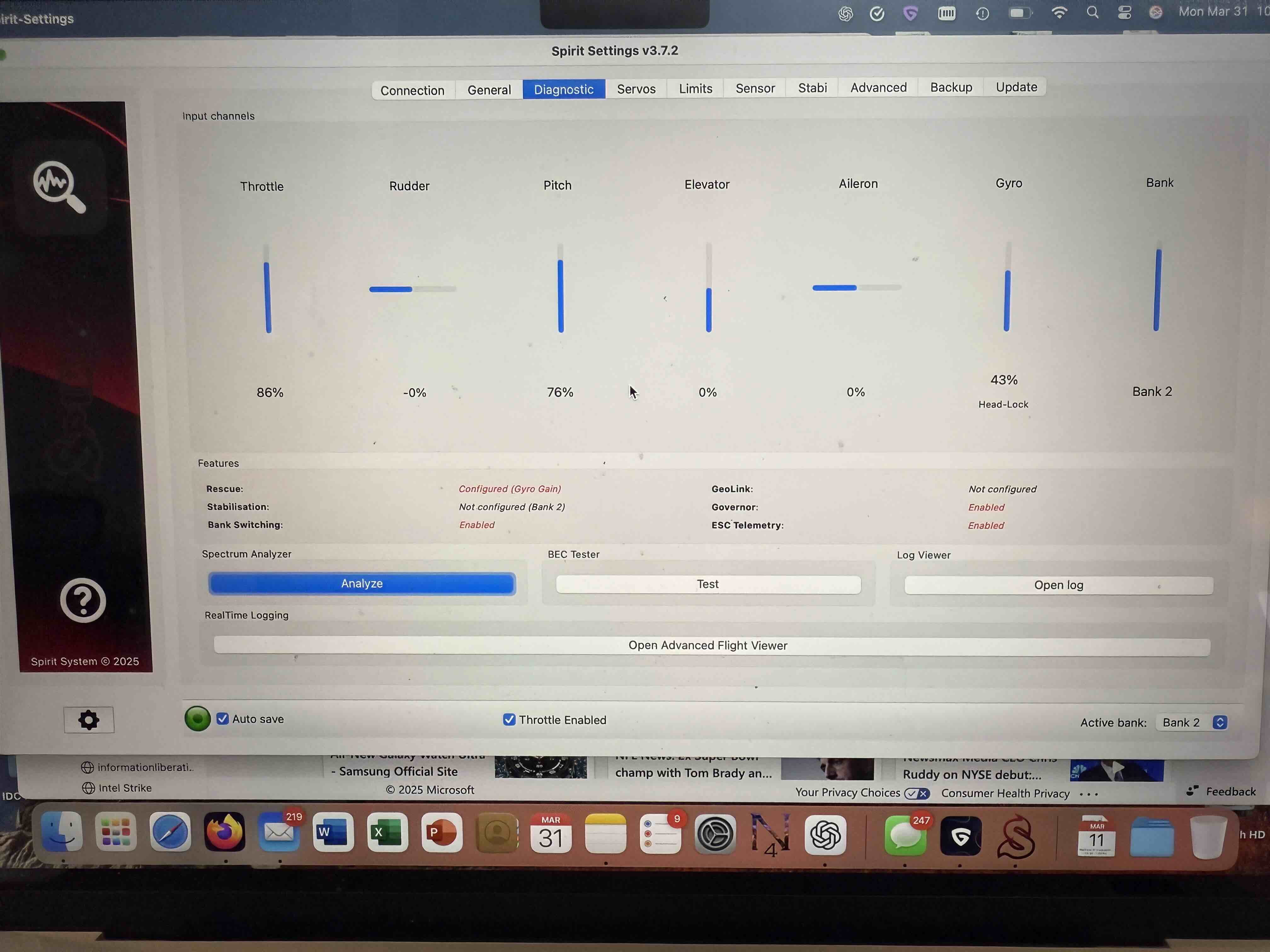

here are the rest of the screen shots

[Habásek]

Please, send me the settings files from the Spirit unit (you can save them to your PC and attach them here). You can do the same with the model in your Jeti via Jeti Studio - save them to your PC and send them here.

[krm97]

Here are the transmitter files

[ZeXx86]

The problem is your Stabi/Function.
It should be set to: Selected by Channel.

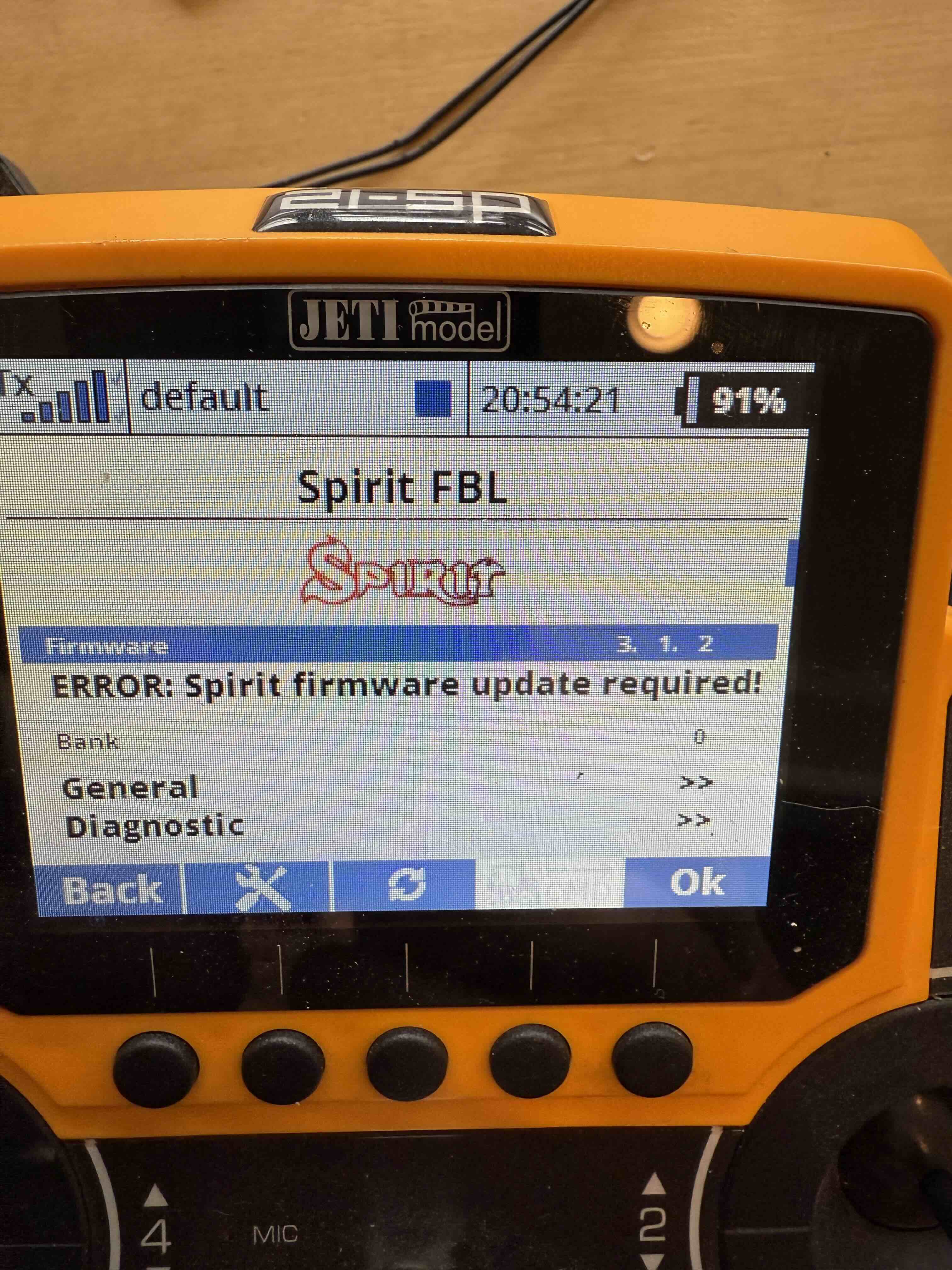

Also you have to update your JETI BIN file. This is super important, otherwise any change in the integration menu will lead to incorrect settings.

[krm97]

Thanks for the help/, I fixed the update in the Jeti 12 transmitter and the Select by channel worked for the Stabli function.

Given that it is select by channel, how does it determine which rescue function one wants to use, like Auto Bailout via altitude function?

[Mona]

Given that it is select by channel, how does it determine which rescue function one wants to use, like Auto Bailout via altitude function?

By channel

Select by channel means you can assign its own channel to each stabilization function and use them seperately or even simultaneously. In your case you have channel 8 = F: Rescue (Automatic), so that's what it controls.

On the other hand if you set stabi function to Rescue (Automatic) in the stabi tab as you initially had, that's the only stabi function you can use and you must activate it by assigning a channel to F: Stabi Function instead. In my opinion this option should be clearly marked as deprecated, it's there for legacy support of units still configured this way but there's no point in doing it and it's confusing to a lot of people.
